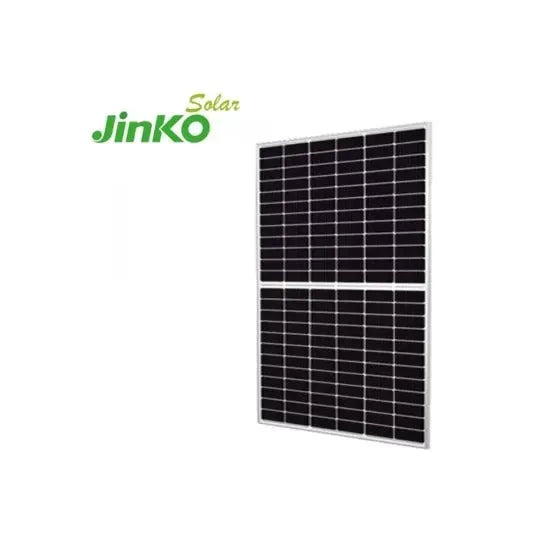

Jinko 520 Watt Mono Perc Half Cut Solar Panel in Pakistan is Rs.52,000/-. The Jinko 520 Watt Mono Perc Half Cut Solar Panel, is engineered for optimal energy production and efficiency. With advanced half-cut cell technology and a peak wattage of 520W, this panel maximizes power output while maintaining high efficiency. Featuring a reliable Risen Twinsel PV-SY02 connector and 144 cells, it ensures durability and consistent performance. With a power tolerance of 0 to +5%, it delivers reliable power output even in varying conditions. Designed for easy installation and compatibility with a maximum system voltage of 1000V DC, it's suitable for a wide range of applications. Trust Jinko for cutting-edge solar solutions that meet your energy needs.
Compatible with High System Voltages: Up to 1000V DC
Compact and Lightweight
Product Specifications
Type
jinko solar panel
front glass
3.2mm, anti-reflection coating
connectorrisen
twinsel pv-sy02
module efficiency
20.26%
no of cell
144cell
power peak watt- pmax (w)
520w
power current maximum impp
12.50a
power tolerance output
0 ~ +5
power voltage maximum vmpp
41.60 v
system voltage max
1000v dc(iec), 1000v dc(ul)
temperature operational
-40~+85℃
weight
28.79kg
dimensions
2230*1034*35mm
short circuit current (isc)
13.23a
open circuit voltage (voc)
49.14v
Product Details
Jinko 520 Watt Mono Perc Half Cut Solar Panel in Pakistan is Rs.52,000/-. The Jinko 520 Watt Mono Perc Half Cut Solar Panel, is engineered for optimal energy production and efficiency. With advanced half-cut cell technology and a peak wattage of 520W, this panel maximizes power output while maintaining high efficiency. Featuring a reliable Risen Twinsel PV-SY02 connector and 144 cells, it ensures durability and consistent performance. With a power tolerance of 0 to +5%, it delivers reliable power output even in varying conditions. Designed for easy installation and compatibility with a maximum system voltage of 1000V DC, it's suitable for a wide range of applications. Trust Jinko for cutting-edge solar solutions that meet your energy needs.
